Durable Single Shaft Shredder For Plastic Lumps , Die Material , Big Block Material

Xinting Machinery Co., Ltd.

Durable Single Shaft Shredder For Plastic Lumps , Die Material , Big Block Material

  • 1
  • 2

Brand Name : xinting machine

Model Number : XT

Certification : CE ,TUV

Place of Origin : CHINA ZHANGJIAGANG CITY

MOQ : 1 SET

Price : ASK ME

Supply Ability : 10 SET PER MONTH

Packaging Details : FILM PACKAGE

Voltage : 380v 50hz 3 phrase as per client's request

OEM : yes

Material of Plastic Crusher Blades : D2,dc53,SKD11

Usage : KS fast pipe shredder Waste Plastic Cusher

keywords : Hard Disk Shredder Machine Single shaft shredder Waste Plastic Pipe Barrel Bottle Single Shaft Shredder

category : plastic single shaft shredder

material : big diameter plastic pipe , plastic lump , hard and soft material

Contact Now

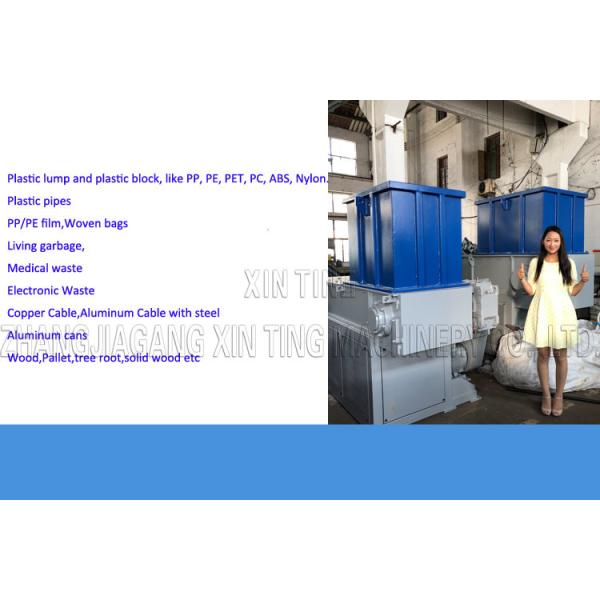

shredder is used for plastic lumps,die material, big block material, HDPE, PVC thick wall pipe

Single shaft shredder is used for plastic lumps,die material, big block material, HDPE, PVC thick wall pipe and other plastic material which is difficult to process by the crusher machine. It is with good shaft structure design, low noise, durable use and the blades are changeable.

Features:

1.The shredder machine with big feeding mouth, it can put the big plastic or rubber product freely.

2.The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
3.The shredder machine is control by PLC system; the blade can rotate inopposite direction and close automatically if something unexpected happens; with very high safety service.
4.The shredder machine runs slowly with low noise and less dusty.
5.The blade material with special alloy steel made, with long life.

Advantages:

1. Low noise, low energy consumption

2. Unique power design,detachable, and convenient for cleaning, maintenance and service
3. PLC program control,safe and reliable utilization, over-load protection, automatic reset

4. Strong shredding capacity and frame

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

Single shaft shredder is used for plastic lumps,die material, big block material, HDPE, PVC thick wall pipe and other plastic material which is difficult to process by the crusher machine. It is with good shaft structure design, low noise, durable use and the blades are changeable.

Features:

1.The shredder machine with big feeding mouth, it can put the big plastic or rubber product freely.

2.The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.
3.The shredder machine is control by PLC system; the blade can rotate inopposite direction and close automatically if something unexpected happens; with very high safety service.
4.The shredder machine runs slowly with low noise and less dusty.
5.The blade material with special alloy steel made, with long life.

Advantages:

1. Low noise, low energy consumption

2. Unique power design,detachable, and convenient for cleaning, maintenance and service
3. PLC program control,safe and reliable utilization, over-load protection, automatic reset

4. Strong shredding capacity and frame

Main technical parameter

Model WT300 WT400 WT500 WT600
Quantity of rotated blade 22 20 24 28
Quantity of fixed blade 2 2 2 4
Rotated diameter 150 220 220 220
Input size 300*300 400*400 500*500 600*800
Motor power 4 11 15 18.5
Hydraulic power 0.75 0.75 2.2 2.2
Weight 300 1100 1100 2200
L*W*H 1200*800*1100 1300*1700*2000 1300*1700*2000 1300*1700*2000
Mesh diameter 22 22 22 22
Motor speed 80-100 80-100 80-100 80-100

Main technical parameter

Model WT800 WT1000 WT4080 WT40120 WT40800
Quantity of rotated blade 46 64 46 10 10
Quantity of fixed blade 4 4 4 2 2
Rotated diameter 400 400 400 400 400
Input size 800*800 1000*1000 800*800 120*120 150*150
Motor 37 45 37 1.5 1.5
Hydraulic power 2.2 3 2.2 0.25 0.25
Weight 3100 1500 3100 3000 3000

character:

1. this machine is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others

2. The blade base and blade on the rotary roller can be disassembly .it is easy to clean and maintenance.

3. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.

4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.

5. Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.

6. The main axis is drive by gearbox, its running very stably, low noise and strong power.

7. the material push feeding system is hydraulic ways , ,its running very stably the machine is control by PLC system ,.the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service

Plastic Lump Shredding Machine/Crate Shredder can be adjusted by customers' special requirements for throughput volume, material to be processed etc.

Components:

Durable Single Shaft Shredder For Plastic Lumps , Die Material , Big Block Material

Durable Single Shaft Shredder For Plastic Lumps , Die Material , Big Block Material

Durable Single Shaft Shredder For Plastic Lumps , Die Material , Big Block Material

Durable Single Shaft Shredder For Plastic Lumps , Die Material , Big Block MaterialDurable Single Shaft Shredder For Plastic Lumps , Die Material , Big Block Material


Packaging Details
standard export material
Port:Shanghai
Lead Time :30 days

FAQ

·

Q:Are you machinery factory or trading company?

A:We are machinery factory

Q:If we have very special request for the production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.

Q: Installation and stuff training available from you?

A: Yes, our engineers will guide machine installation and train your workers.

Q: How can we visit your company and machines?

A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.

Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
